Fire Safe Bronze High Performance Butterfly Valve

SHENGFEI® High Performance Butterfly Valves provide a bi-directional zero leakage seal. Superior service life capability and extremely easy maintenance in the field are the advantages of SHENGFEI butterfly valves. Renewable valve seat extend the SHENGFEI valves' service life.

SHENGFEI Double Offset Lugged Ali Bronze High Performance Butterfly Valve is suitable for high temperature, high pressure critical service applications, an innovative design butterfly valve for arduous duties delivering reliability and ease of maintenance.
A lugged, high performance butterfly valve featuring an Aluminium Bronze body, disc and RTFE / Inconel seat providing Fire Safe zero leakage shut-off.
SHENGFEI high performance butterfly valves have been successfully installed in power plants, desalination plants and offshore drilling projects; Marine;offering a lightweight and simple to install.
Sizes available:
ANSI Class 150 2″-60″ (50-1500mm)
ANSI Class 300 2″-48″ (50-1200mm)
ANSI Class 600 2″-24″ (50-600mm)
Bi-Eccentric
Standard API 609 CAT. B
Body Material - ASTM B148 UNS C95800
Disc Material - ASTM B148 UNS C95800
Seat: Inconel +RTFE
Shaft: MONEL K500
Shutoff Rating: Class VI, Bubble Tight
Certifications: API 607,PED
Fire safe.
API 607 certified.
For full technical specifications please download.

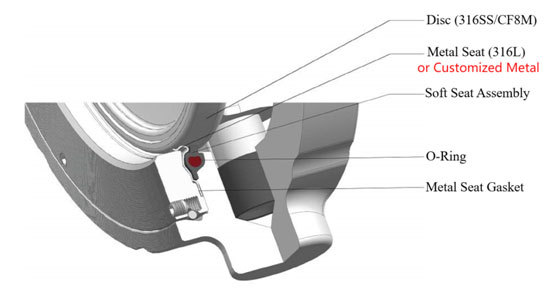

Unique Valve Seat Design:
